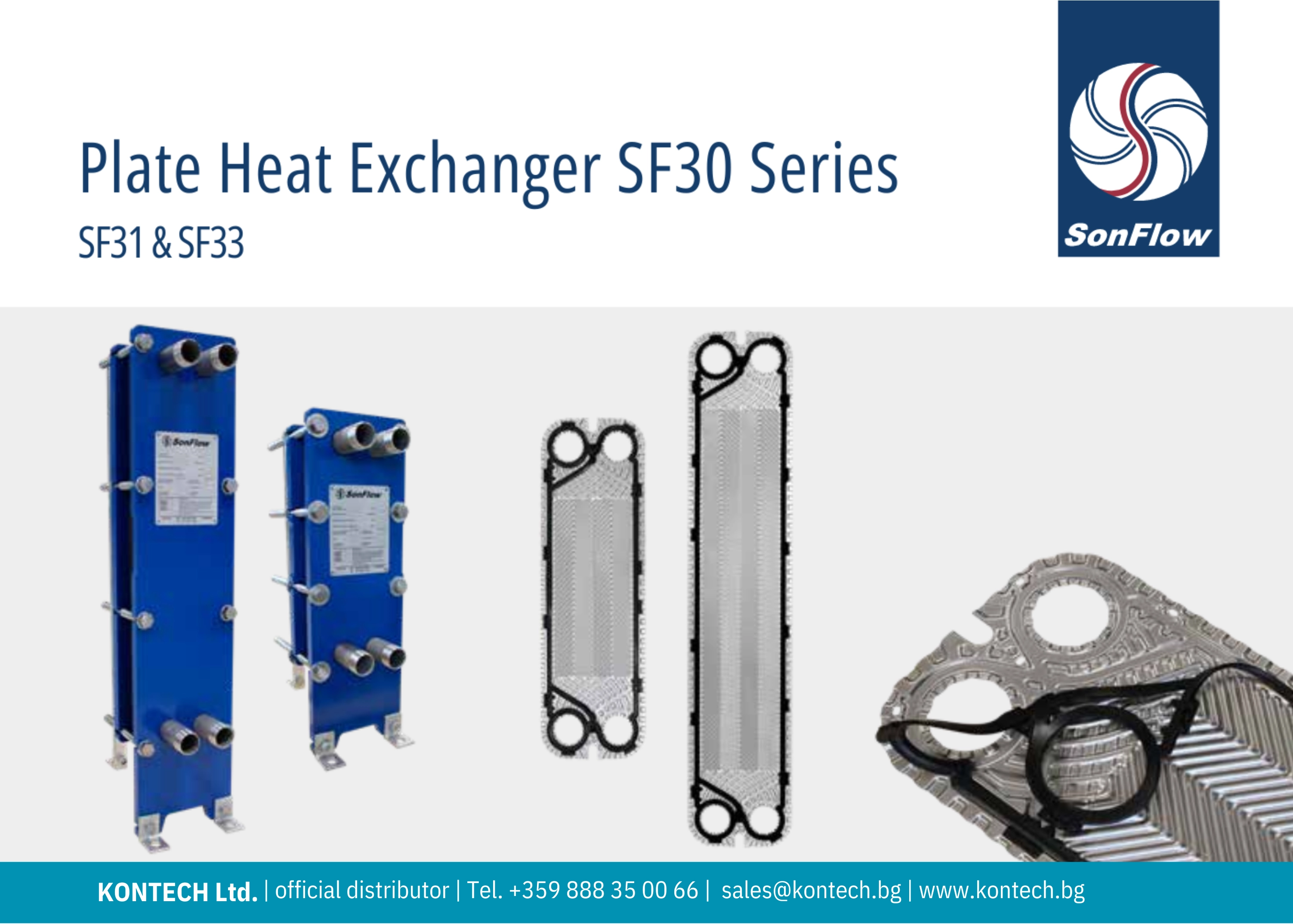

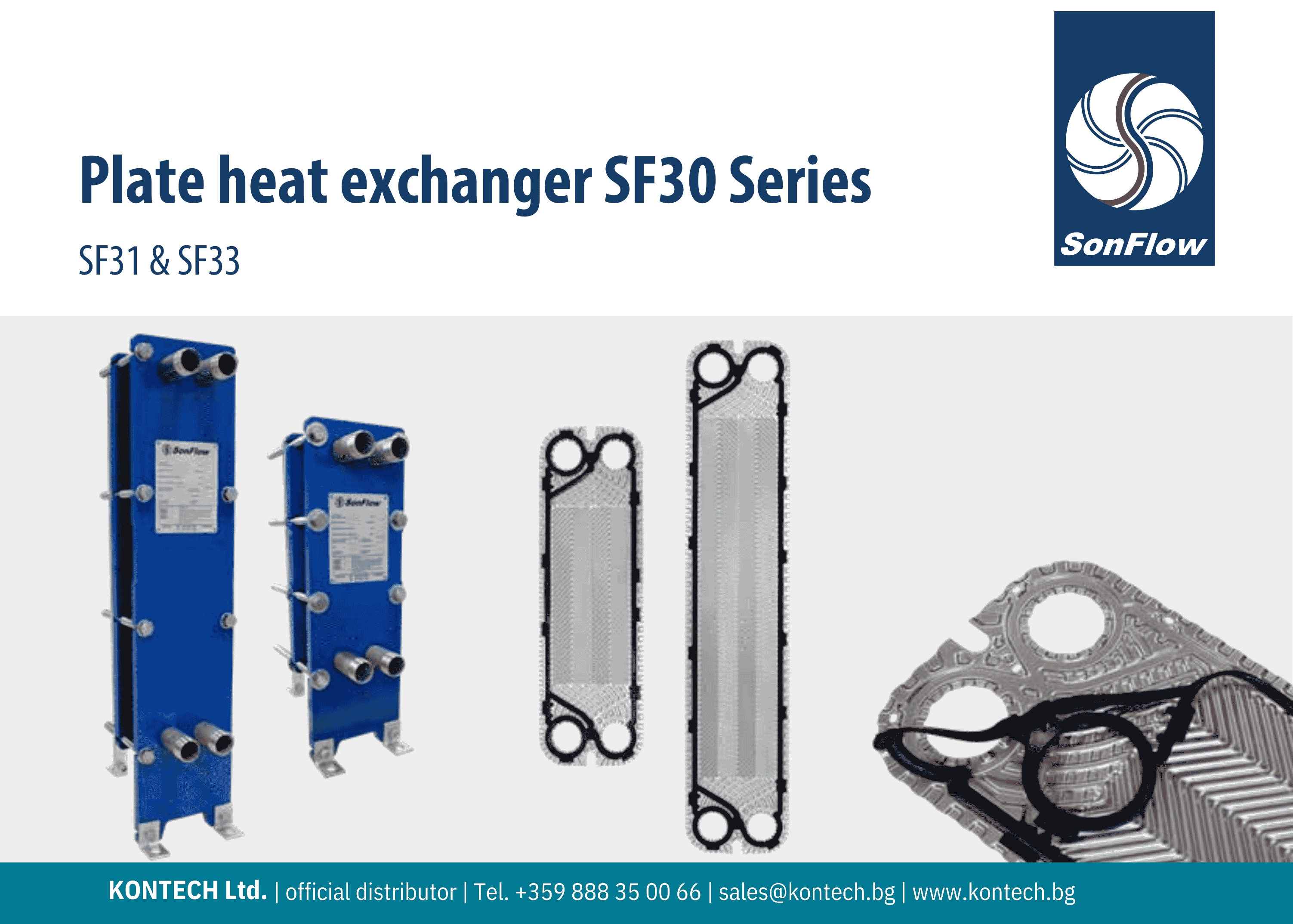

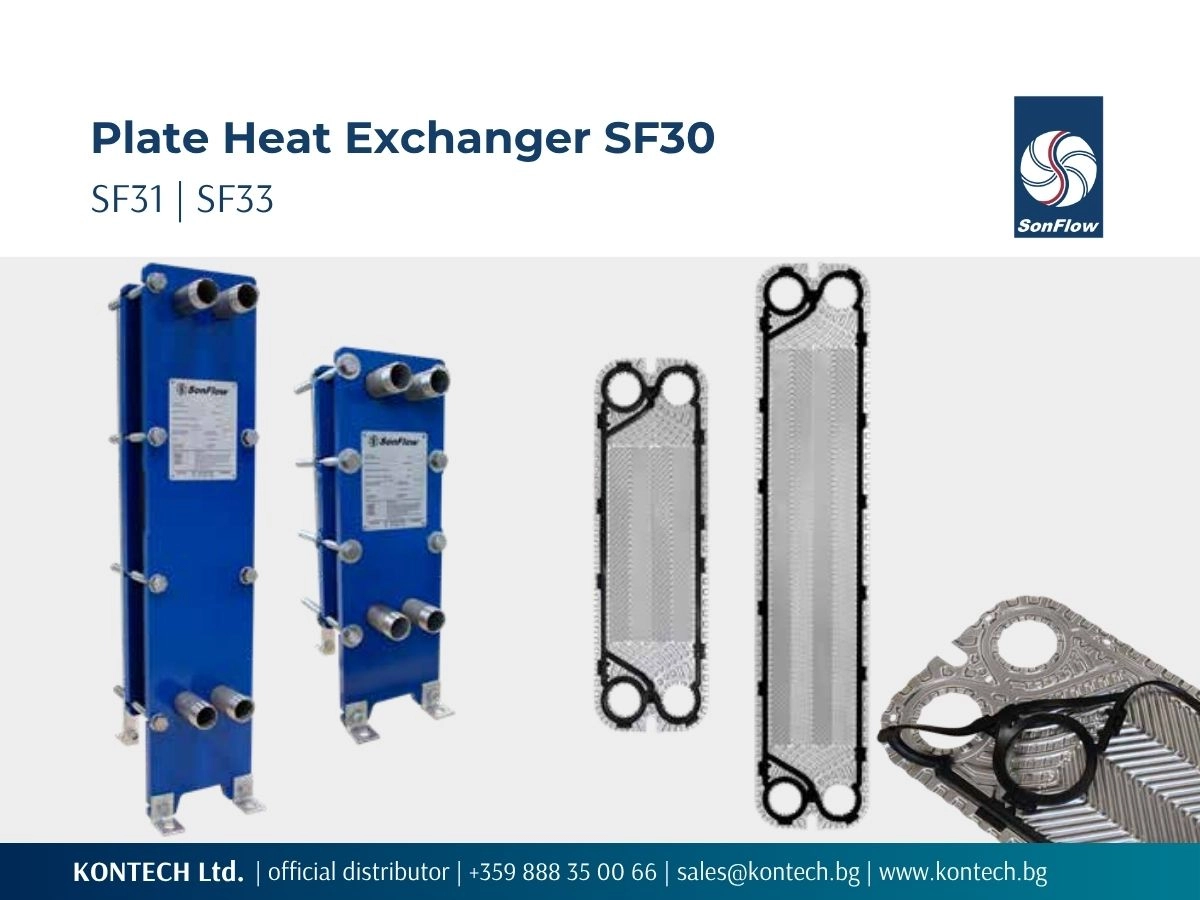

Heat Exchanger SF31 and SF33
SonFlow offers a wide range of Plate Heat Exchangers and is the ideal choice suitable for a wide variety of applications across numerous markets segments.
SonFlow Plate Heat Exchanger SF30 series will cover many duties in a single pass solution.
Typical applications:
• HVAC
• Heat recovery
• Industrial
• Food & beverages
• Sugar industry
• Chemicals
• Marine
• Mining
• Electronics
Benefits:
• Lower operating costs
• Cost-effective
• Easy assembly
• Increased energy efficiency
• Easy cleaning
• Dead spots, that cause corrosion and fouling are eliminated
Features:
Every detail is carefully designed to ensure optimal performance, reduced maintenance costs and decreased downtime:
• Compact design
• High flexibility
• Lock gasket system
• Gentle product handling
• Design pressure up to 25 bar
• Operating temperature: up to 180° C
• Leak chamber
• Fixed bolt head
• Lifting lug
• Lining
• Lock washer
Design pressure:
• Painted frames: 1.0/1.6/2.5 MPa
• Stainless steel: 1.0/1.6 MPa
Construction standards:
• EN13445
• ASME sec VIII, Div. 1
Frame:
• Painted frame, RAL 5010 (available in other colours)
• Stainless steel frame
Connections:
• DN 25/1’’ dairy pipe or union
• 1¼” threaded pipe BSP/NPT, stainless steel or titanium
• 1.5” threaded pipe BSP/NPT, stainless steel or titanium
• According to all known standards
Plate material:
• AISI 304/316 and titanium
• Other materials available on request
Gaskets:
• Click on gasket – a glue less system for sealing
• Materials: NBR, EPDM and Viton
• Other materials available on request
Accessories:
• Drip tray
• Insulation jackets
• Safety cover
• Assembling spanner
• Foundation feet
