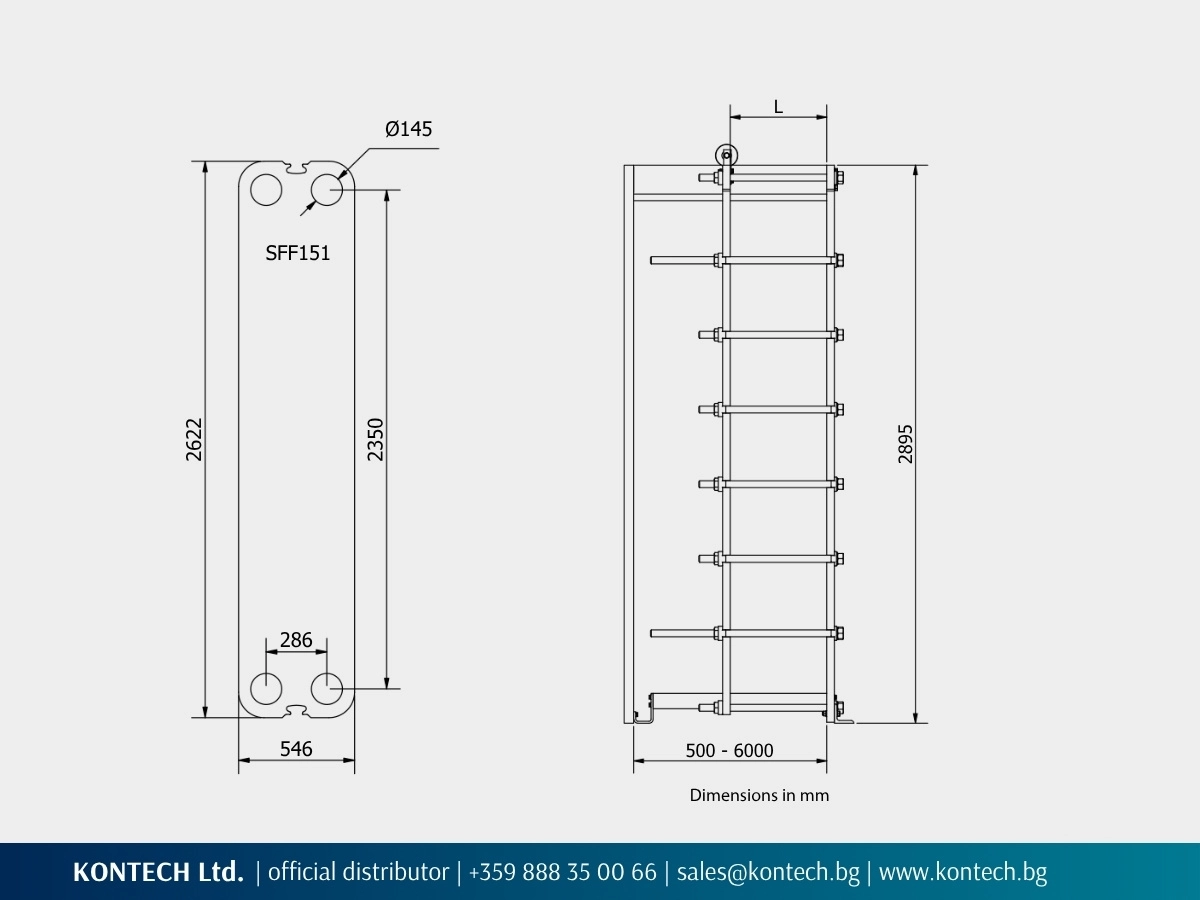

Heat Exchanger SFF151

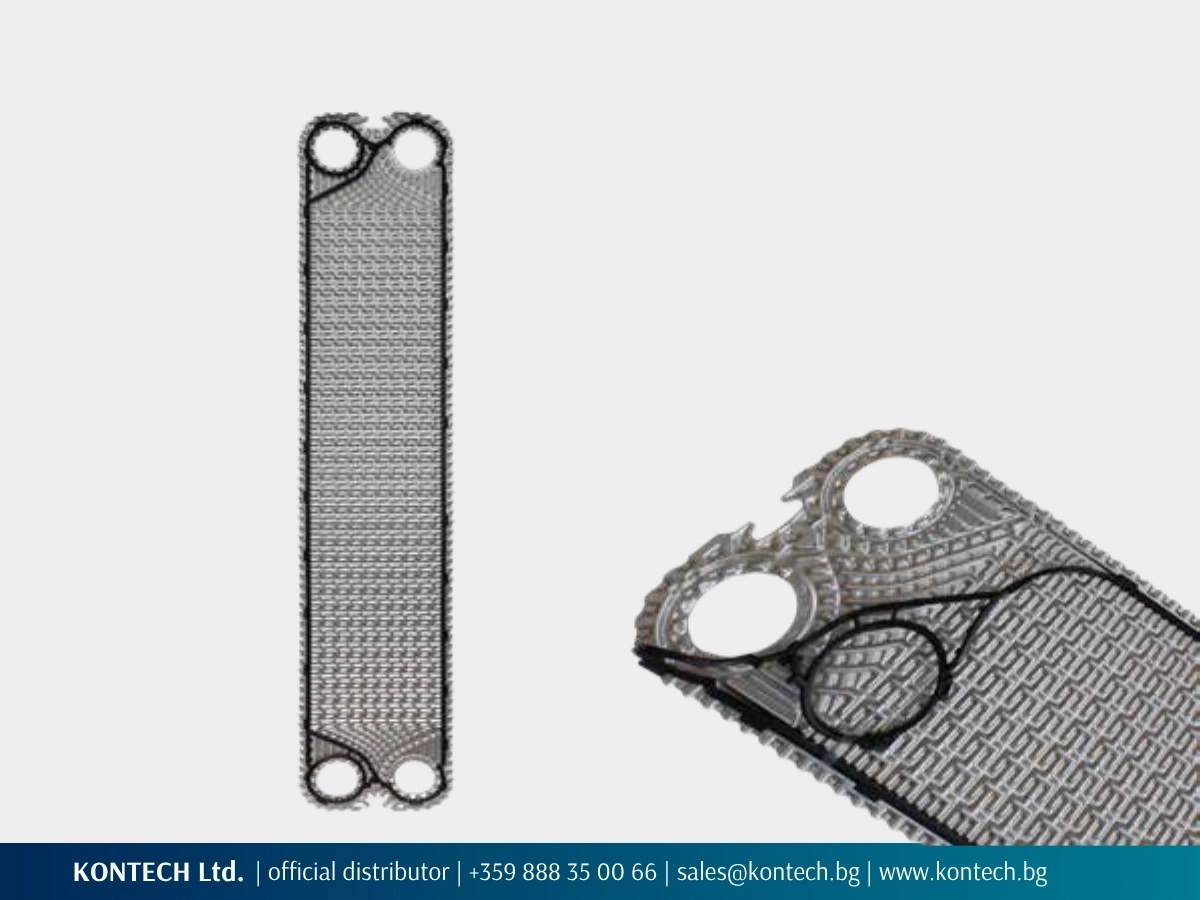

SonFlow offers a wide range of Free Flow Plate Heat Exchangers for various market segments. Our SFF150 series is ideal for industries that handle liquids with fibers and solid particles, such as fruit juice and sugar production. Our plate heat exchangers ensure gentle treatment, even distribution of the medium, and high product quality
Typical applications:
• Dairy/food/beverage industry
• Sugar industry
• Biogas industry
• Wastewater industry
• Pulp and paper industry
• Mining industry
Benefits:
• Designed for CIP cleaning
• Easy assembly
• Cost-affective
• Designed to combat fouling
• Clog resistant
• The inlet area is designed for optimal distribution and flow across the plate
• No dead spots on the plate
Features:
Every detail is carefully designed to ensure optimal performance, reduced maintenance costs and decreased downtime:
• Compact design
• Lock gasket system
• Gentle product handling
• Suitable for products with solid particles
• 12/6 mm plate gab
• Design pressure up to 10 bar
• Operating temperature: up to 180° C
• Fixed bolt head
• Lifting lug
• Lining
• Lock washer
Design pressure:
• Painted frames: 1.0 MPa
• Stainless steel frame: 1.0 MPa
• Max. differential pressure: 0.6 MPa
Construction standards:
• EN13445
• ASME sec VIII, Div. 1
Frame:
• Painted frame, RAL 5010 (available in other colours)
Connections:
• DN150/6’’ flange in carbon steel or rubber lined
• According to all known standards
Plate material:
• AISI 304/316 and titanium
• Other materials available on request
Gaskets:
• Click on gasket – a glue less system for sealing
• Materials: NBR, EPDM and Viton
• Other materials available on request
Accessories:
• Drip tray
• Insulation jackets
• Safety cover
• Assembling spanner
• Foundation feet
